CANON CR-N700
Three-year warranty

PTZ Cameras

Canon CR-N700

An exceptional 4K60P professional PTZ camera with 12G-SDI connectivity and class-leading auto focus with built-in intelligent Auto Tracking.

Do you want to be contacted by a Canon representative?

Please complete the short form and one of our experts will be in touch.

Close the distance with unrivalled clarity

Harness the power of a 1.0-type 4K sensor and DIGIC DV7 processor with Dual Pixel AF. A 15x optical zoom (30x in Full HD) captures productions in exceptional detail, even in Night Mode. Stream 4K60P and HDR quality broadcast footage via a wide range of IP protocols and automate your productions using Auto Tracking and Auto Loop functions*

*Free Auto Tracking App RA-AT001(Lite) available via new FW, 1.4.0 or later. Paid license is necessary for full functionality of auto tracking

See full specification
CANON CR-N700
CANON CR-N700

Specifications

  • 4K 60P Image Quality

    Captures exceptional broadcast level imagery in up to 4K UHD 60P, 4:2:2 10-bit

  • 1.0-inch Type CMOS sensor

    Produces incredible depth of field with high sensitivity and low noise, even in low light

  • DIGIC DV7 Processor

    Powerful image processing for exceptional results

  • 15x Optical and 30x Advanced zoom

    Image stabilised 15x Optical zoom in 4K or up to 30x Advanced zoom in Full HD

  • Region of Interest cropping

    Intelligent cropping of a feed enables a single camera to produce two video feeds up to FHD

  • HDR Imagery

    Exceptional 4K HDR imagery for PQ or HLG formats, plus Canon Log 3 and Wide DR

  • Dual Pixel CMOS AF with EOS iTR AF X

    Smooth, fast, and accurate autofocus with ‘deep learning’, head detection, eye detection and tracking

  • Inbuilt Protocols

    Including NDI|HX*, SRT, FreeD, RTMP/RTMPS, RTP/RTSP, Canon XC and Standard Communication protocol

    * NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries

  • Flexible connectivity

    A host of connectors such as 12-G-SDI, 3G-SDI, HDMI, Gen lock and Dual XLR audio inputs

  • Auto Tracking

    Free with latest firmware, take advantage of Auto Tracking App RA-AT001(Lite) to follow a subject automatically. A paid version (RA-AT001) unlocks extra versatility.

  • Auto Loop functionality

    Programme repeated camera pan, tilt and zoom movements on a loop via an additional paid application

See full specification

UPGRADE YOUR CONTENT WITH A NEW FIRMWARE UPDATE
TAKE MORE CONTROL WITH A NEW FIRMWARE UPDATE*

Download the free Auto Tracking App RA-AT001(Lite) and take advantage of improved tracking movement and accuracy for the CR-N700, plus Clear Scan setting improvement, Canon709, CMT709 colour spaces and White Balance G Gain.

*available summer 2024

  • Auto Tracking

    Auto Tracking Application RA-AT001. Unlock the potential to track the main speaker with head/face detection as they move around the stage, automatically. Optimise production efficiency for lectures, corporate events, houses of worship, live performances and broadcast.

  • Auto Loop

    Auto Loop Application RA-AL001. Programme repeated camera pan, tilt, and zoom movements to track repeated live action, consistently and accurately. Capture footage of live events and musical performances with style.

PTZ CAMERA

See the CR-N700 at work

Discover how the CR-N700 can enhance your next production with professional quality, versatility and superb flexibility to integrate with your workflow.

Professional 4K PTZ camera fit for a variety of applications

  • TV Studios

  • Broadcast

  • Live Events

  • Reality TV

  • Houses of Worship

  • Sports
Canon Camera

4K detail for imaging excellence

A 1.0-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit, 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Class-leading optical precision

The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. And when conditions are unstable, Canon’s renowned Image Stabilizer captures optimal footage.

CANON CR-N700
Canon Camera

Award-winning Auto Focus technology

Fast, intelligent, and extremely accurate focussing via multiple modes thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

EOS iTR AF X

Deep learning autofocus technology locks on to a subject’s head, even if they turn away.

Eye Detection AF

Detects and tracks the subject’s pupil for precise focussing.

Face Priority/Face Only AF

Face Priority AF prioritises the subject’s face, while Face Only AF responds when a face is detected.

Touch AF

Select your own focus point on screen with the Remote Camera Control Application.

Dual Pixel Focus Guide

A visual representation showing when a subject is in focus.

Accurate 4K Auto Tracking*

Unlock the potential to track the main speaker with face/header detection as they move around the stage, automatically. Capable of multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more mean the ideal tracking set-up can be easily achieved.

*Free Auto Tracking App RA-AT001(Lite) available via new FW, 1.4.0 or later. Paid license is necessary for full functionality of auto tracking

Find out more
Auto Tracking Software
Auto Loop frames

Intelligent Auto Loop*

Programme repeated camera pan, tilt and zoom movements to track repeated live action, consistently and accurately thanks to Canon’s advanced drive mechanism. Experience the flexibility of programming movements with the ability to initialise a loop back and forth, meaning no camera operator is required. Five automatic movement routes can be registered and are easy to create or customise thanks to an easy setting UI.

*Requires paid licence

Find out more

Multiple protocols for seamless integration

The CR-N700 features SRT and NDI|HX1 that produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP are included, along with Canon XC and Standard communication protocols, plus FreeD for integration into virtual productions.

Canon Camera
Canon Camera

Powerful HDR imagery and low light capture

Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match your image with other Canon cameras.

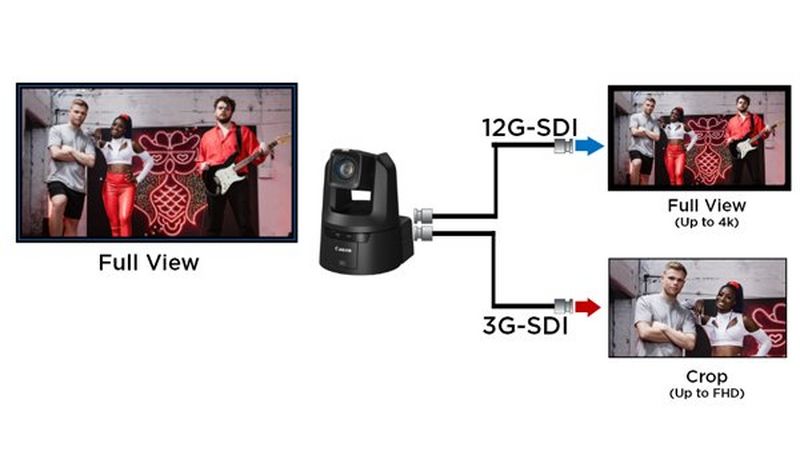

Crop function – single camera, two video feeds

Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Canon Camera
Canon Camera

Night Mode

Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Comprehensive connectivity

Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. CR-N700 also includes 3G-SDI and GEN-LOCK.

CANON CR-N700
Canon Camera

Smooth and precise control

The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

Comparison

See how the CR-N700 compares to the CR-N500 and CR-N300.
CANON CR-N700
CR-N700
CR-N500
CR-N300

Sensor Size

1.0-Type CMOS
1.0-Type CMOS
1/2.3-Type CMOS

Maximum Resolution

4K UHD 60P 4:2:2 10-bit 1
4K UHD 30P 4:2:2 10-bit 2
4K UHD 30P 4:2:2 10-bit 2

Processor

Digic DV7
Digic DV6
Digic DV6

Optical Zoom

15x Optical
15x Optical
20x Optical

Focussing System

Dual Pixel CMOS AF / iTR AF X/ Eye AF
Dual Pixel CMOS AF / Face Detection AF
Hybrid AF /Face Detection AF

Protocol support

NDI|HX, SRT, FreeD, XC Protocol, RTSP/RTP, RTMP/RTMPS, Standard Communication
NDI|HX, SRT 3 , FreeD 3 , XC Protocol, RTSP/RTP, RTMP/RTMPS, Standard Communication
NDI|HX, SRT 3 , FreeD 3 , XC Protocol, RTSP/RTP, RTMP/RTMPS, Standard Communication

Video Output I/F

12G-SDI/3G-SDI/HDMI/IP
3G-SDI/HDMI/IP
3G-SDI/HDMI/IP/USB

Mic input I/F

XLR/3.5mm mini jack
XLR/3.5mm mini jack
3.5mm mini jack

  1. 12G-SDI and HDMI output
  2. HDMI output
  3. Available via Firmware Update
CANON CR-N700

What’s in the box

Everything you need for professional 4K remote video

  • CR-N700 Camera

  • Mounting Bracket, with screw

  • Safety Wire, with screw

  • Camera-to-mount Safety Wire, with screw

  • Remote Control (WL-N01)

Related Accessories

  • PTZ Controller

    RC-IP1000
    A professional PTZ controller with 7-inch touchscreen, offering precise control and IP video monitoring for up to 200 feeds
    View details RC-IP1000

  • PTZ Controller

    RC-IP100
    A high quality controller with a multi-function joystick and intuitive touchscreen for easy control of up to 100 connected cameras.
    View details RC-IP100
  • Canon Remote Camera Control Application, interface

    PTZ Software Controller

    Remote Camera Control Application
    Free to download Canon software to control and adjust settings on up to 20 PTZ cameras from your PC or tablet.
    View details Remote Camera Control Application
  • Wall Mount Bracket A-RMB7(Black)

    Accessories

    Wall Mount Bracket A-RMB7 (Black)
    Wall Mount Bracket designed to support Canon PTZ Camera mounted on wall or other surface.
    7 kg Max load capability.
  • Wall Mount Bracket A-RMB7(White)

    Accessories

    Wall Mount Bracket A-RMB7 (White)
    Wall Mount Bracket designed to support Canon PTZ Camera mounted on wall or other surface.
    7 kg Max load capability.
